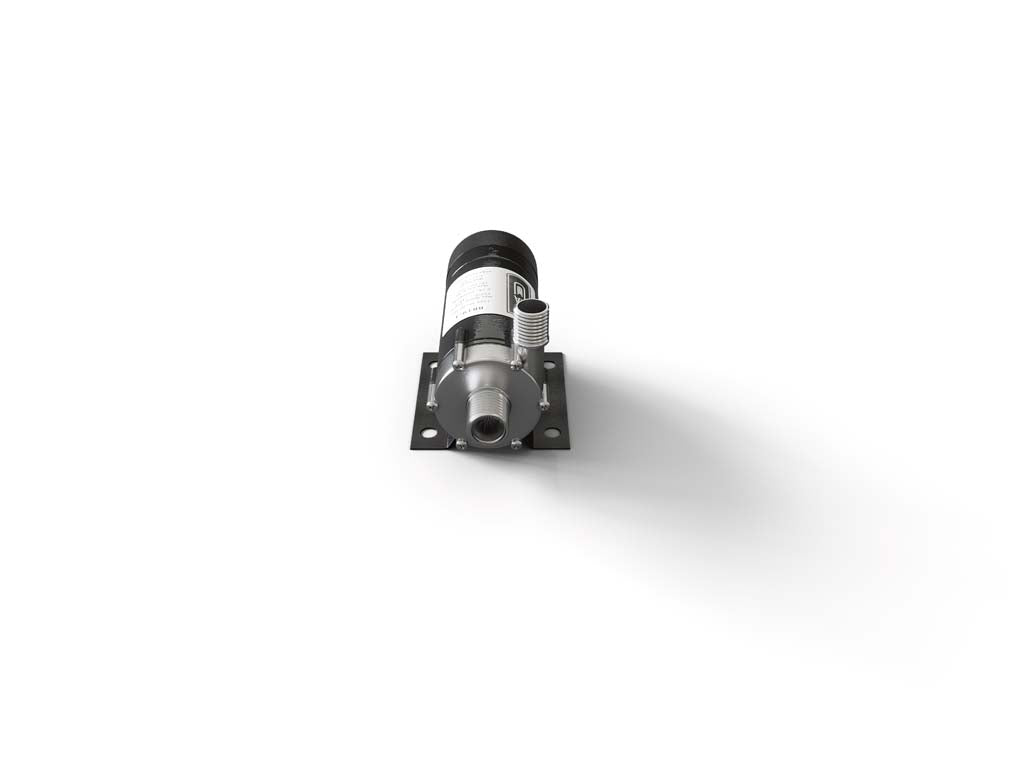

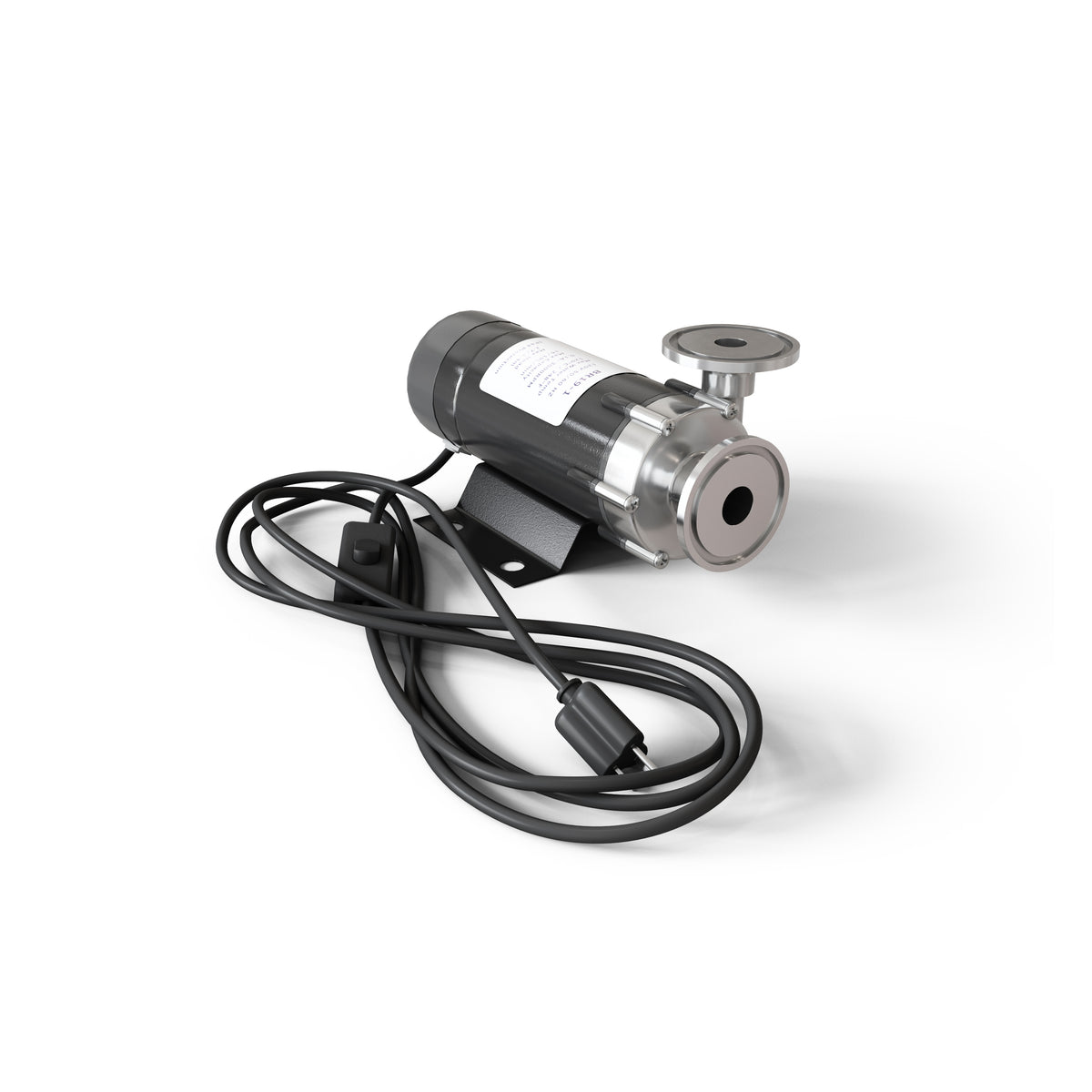

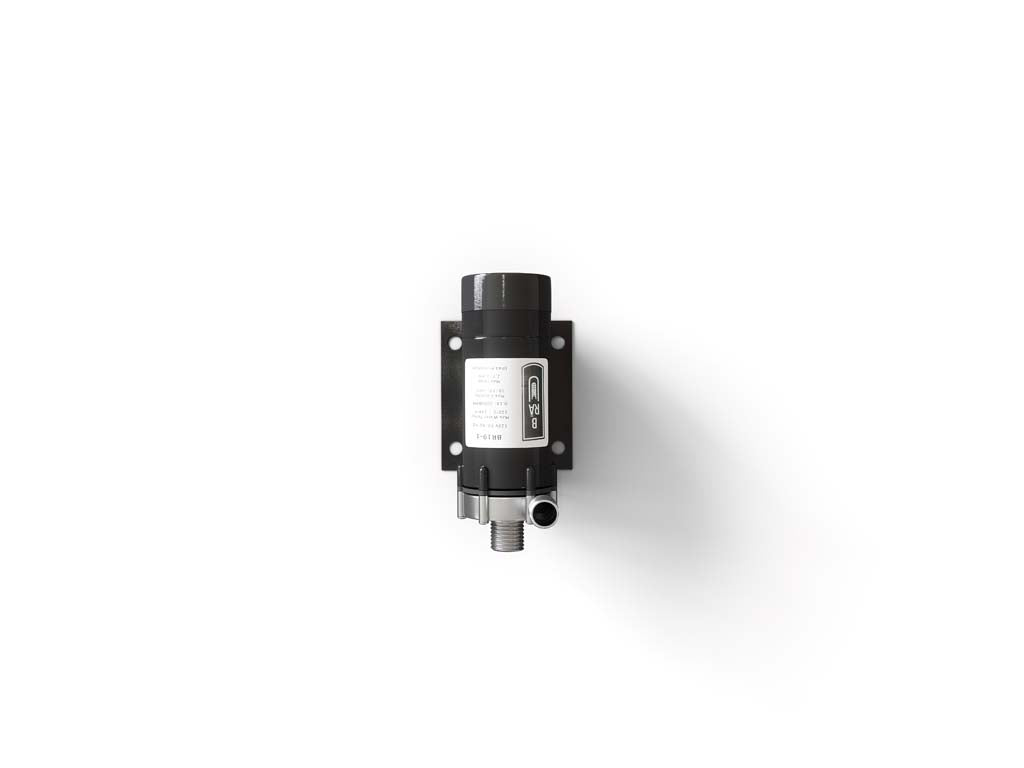

Magnetic Drive Brewing Pump 240V – BR-19 (1.5″ Tri-Clamp)

✓
Designed and assembled in Vancouver, BC. US tariffs and duties paid by us on every order.

A compact, sealed magnetic drive pump built for serious brewers. The BR-19 handles boiling wort with ease, delivering quiet, efficient transfer performance in a fully enclosed design rated to 120°C (248°F).  1.5" Tri-clamp connections.

• Max flow: 19 L/min
• Max head: 3.4 m
• IP44-rated sealed body
• Maintenance-free magnetic drive
• Quiet, vibration-free operation

High-Performance Wort Transfer in a Compact Package

Engineered for electric brewing systems and hot-side fluid handling, the BR-19 Magnetic Drive Pump delivers reliable, silent performance with no need for lubrication or ongoing maintenance. Rated for liquid temps up to 120°C (248°F), it’s perfect for moving boiling wort, sparge water, or CIP solutions without risk of contamination.

Unlike typical homebrew pumps, the BR-19 features a sealed pump body with IP44 protection, making it ideal for wet brewing environments. The magnetic drive system eliminates direct motor contact, ensuring vibration-free operation and zero chance of leaks from worn seals.

Key Features:

  • Quiet Operation: Magnetic drive motor minimizes noise and vibration
  • IP44-Rated Sealed Body: Built for splash zones and steamy brew days
  • Maintenance-Free: No lubrication required—safe for wort transfer
  • Modular Mounting: Stainless steel base plate allows secure mounting in any orientation
  • Serviceable Head: Pump head can be disassembled for inspection or cleaning

Technical Specs – BR-19 Model

  • Connections: 1.5" tri-clamp
  • Max Flow Rate: 19 L/min (5 gal/min)
  • Max Head: 3.4 m (11 ft)
  • Dimensions: 200 mm (7.9") L × 82 mm (3.2") W × 101 mm (4") H
  • Power: 0.1 A @ 240V
  • Weight: 1.8 kg (4 lbs)

Whether you're recirculating a mash, transferring to your fermenter, or running CIP cycles, the BR-19 is the compact, reliable workhorse your system deserves.

$120.00 USDShips from Vancouver, BC
US tariffs & duties: paid by us.
  • Tariffs paid
  • Duties & customs paid
  • Free shipping over $600

Add $480 more and shipping to the lower 48 is free too. Tariffs and duties are already paid on every order. How it works

→
Ready to ship · most orders out in under a week
1y
1-year warranty · lifetime parts · every part replaceable
✉
