Counterflow Wort Chiller | Stainless Coil-in-Coil Design

Tri-Clamp Counterflow Wort Chiller

Hot wort runs through the stainless inner tube while cold water runs the other way through the stainless outer shell, so your wort reaches the fermenter chilled in one pass. Every surface the wort touches is stainless steel, the same as your kettle, pump and fermenter.

Key features

• About 20 ft of coil-in-coil tubing, wound into a compact 12" coil (7 turns).
• Stainless wort path, no copper. Clean it with the same caustic and acid products as the rest of your brewery.
• Tri-clamp throughout: 1.5" tri-clamp wort in and out, tri-clamp water ports.
• Welded mounting base, drilled to bolt onto the Bräu Supply brew table next to your pump.
• Electropolished, with the wort and water flow directions etched on the unit.
• Pump or gravity: run wort through it with a brew pump (not included) or by gravity from the kettle.

Configurations

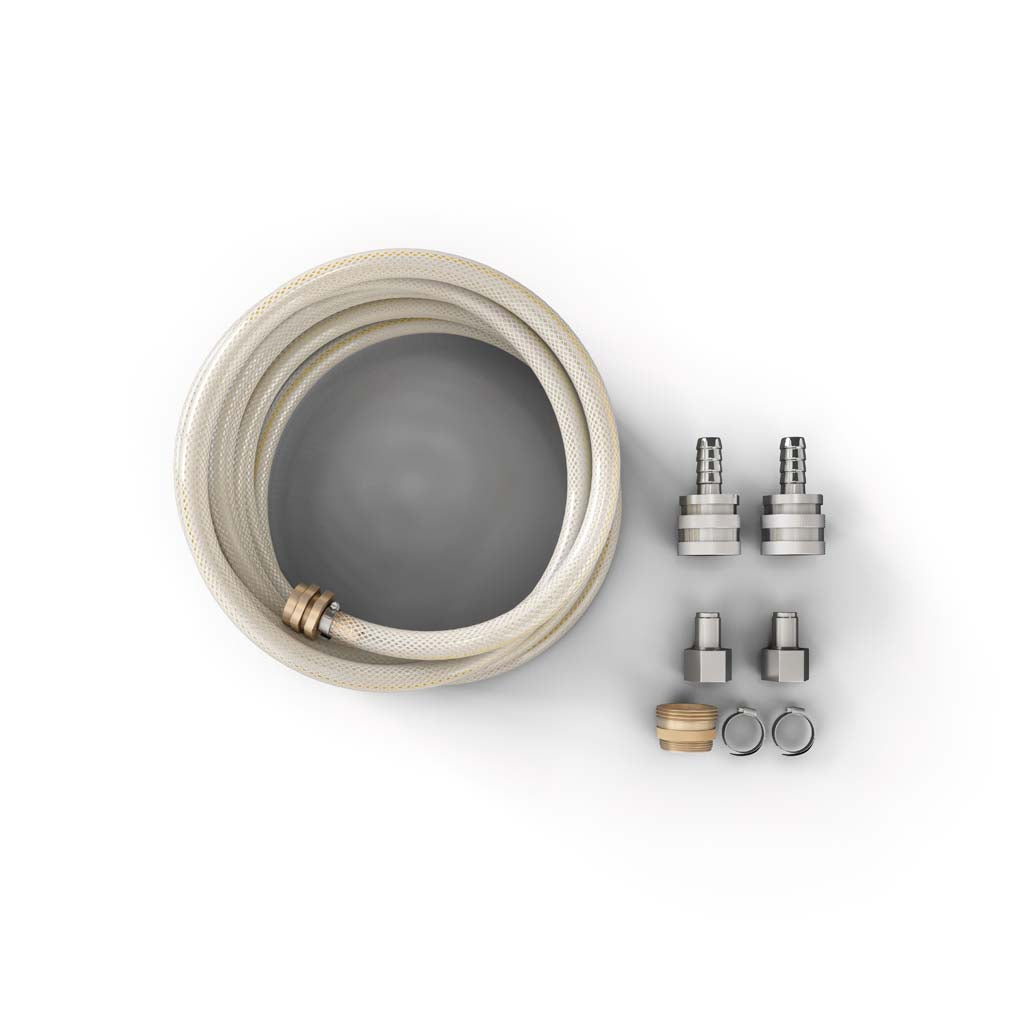

• With Water Connection Kit: the chiller and a water connection kit for your tap.
• With Water Connection Kit + Essentials Kit: adds a 1.5" thermowell, tri-clamp tee, clamps and gaskets so you can read wort temperature inline.
• All-In Kit (QD fittings, no water kit): for the Unibräu All-In, which already ships with a water kit. The chiller plus 4 tri-clamp-to-QD adapters, 2 quick-disconnect 5/8" hose barbs, 3 ft of 1/2" silicone hose, and 4 clamps and gaskets, so wort runs from the pump through the chiller and straight back into the kettle.

Comparing chillers? See Bräu Supply vs Spike wort chiller.
