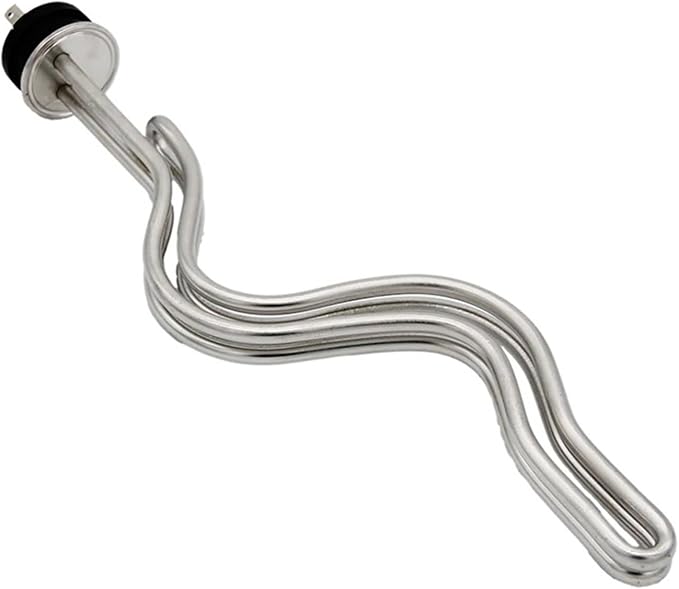

5500W ULWD Tri-Clamp Brewing Element – Mirror Polished Stainless Steel
$75.00 USD
High-output ULWD heating element for electric brewing and recirculating systems.
The 5500W ULWD Brewing Element is a high-power ultra-low watt density heating element designed for electric brewing applications requiring fast heat-up and stable temperature control. Its ULWD design minimizes localized heat stress, making it suitable for wort heating, recirculation, and HERMS-based systems.
The element mounts via a 1.5" tri-clamp flange for quick, sanitary installation into compatible vessels or heating ports.
Constructed from mirror-polished 304 stainless steel and measuring 14" from flange face to element tip, the element is easy to clean with a simple PBW soak—no scrubbing required.
Specifications
- Power — 5500W
- Watt Density — ULWD (Ultra-Low Watt Density)
- Connection — 1.5" Tri-Clamp
- Element Material — Mirror-polished 304 stainless steel
- Length — 14" from flange face to element tip
Applications
- Electric brewing systems
- Wort heating and boil applications
- Recirculating and HERMS-based systems
Compatibility
- Bräu Supply kettles with 1.5" tri-clamp element ports
- Most vessels designed for tri-clamp mounted heating elements
Care & Cleaning
The mirror-polished finish allows easy cleanup without scrubbing. Soak in PBW and wipe clean after use.
Important Notes
- Always operate fully submerged — dry firing will damage the element.
- Designed for brewing systems and process heating applications.
