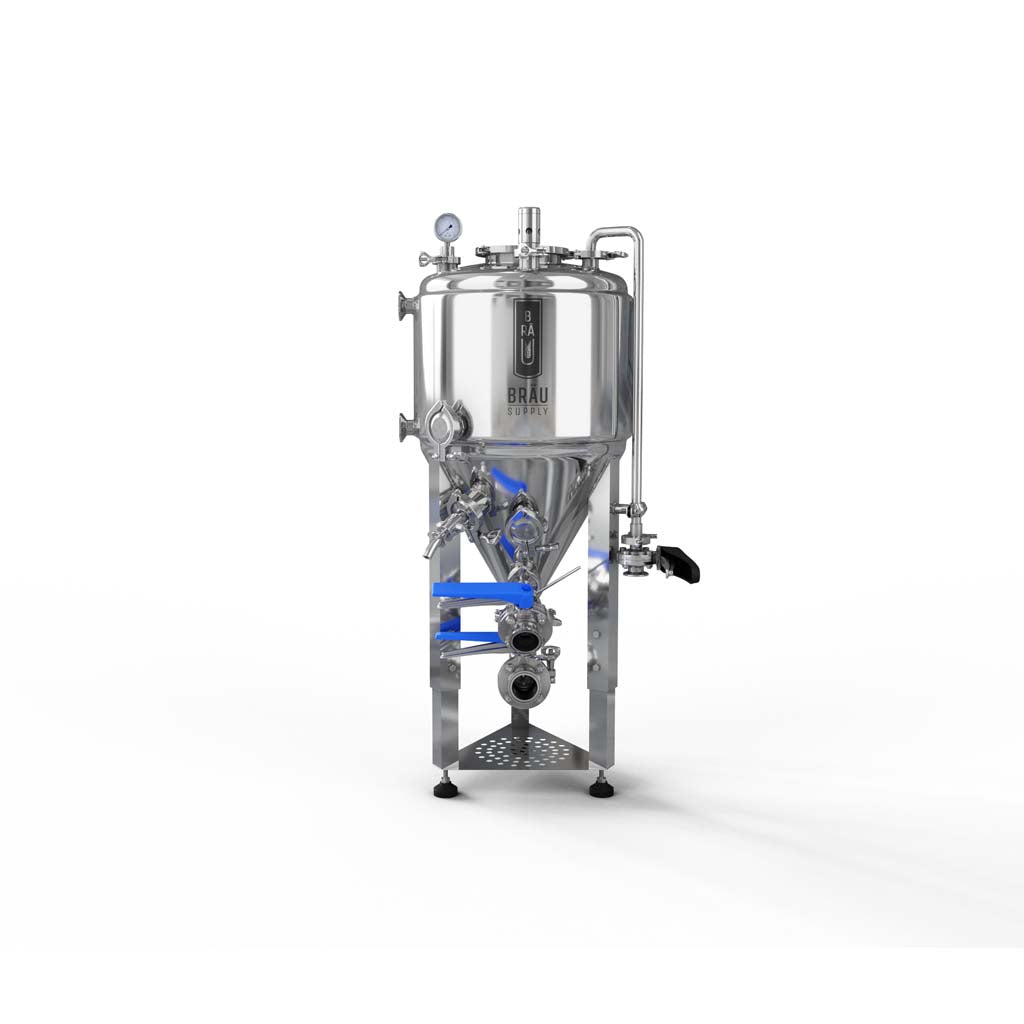

Unitank – 13 Gal (50L) Jacketed Conical Fermenter
$1,999.00 USD
13 Gal (50 L) Jacketed Unitank Fermenter
Pressure-rated, tri-clamp conical fermenter designed for ~10 gallon batches with closed, temperature-controlled fermentation.
The Bräu Supply 13 Gal (50 L) Unitank is a compact, pressure-rated conical fermenter engineered for advanced homebrewers, pilot brewing, and R&D environments that demand professional cold-side capability. Built from sanitary 304 stainless steel at 1.5 mm thickness and rated to 15 psi, it supports pressure fermentation, cold crashing, closed transfers, and in-tank carbonation using a fully tri-clamp, serviceable layout.
Working volume: Designed for a ~10 gal batch size (typical working volume). Maximum capacity is 13 gal (50 L).
Cooling: This model uses a fully welded glycol jacket on the cylindrical body (body-only jacket). The cone is not jacketed.

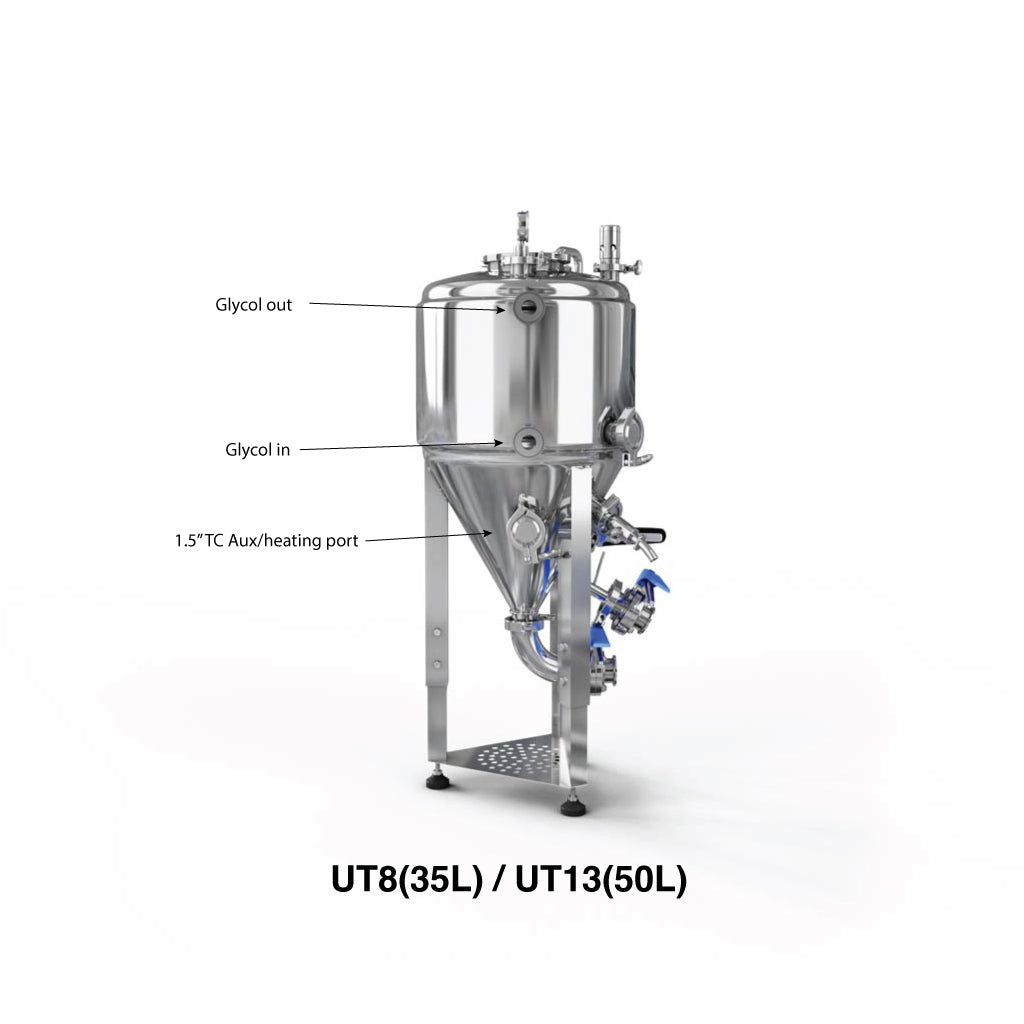

Temperature Control – Body-Only Glycol Jacket
The welded glycol jacket wraps the cylindrical body for efficient cooling without internal coils. This keeps the interior fully open for inspection and cleaning while providing stable fermentation temperature control using a glycol chiller (or tap water where appropriate).
Pressure Fermentation & Closed Transfers (15 psi)
Rated to 15 psi (1 bar), the Unitank supports pressure fermentation, spunding, and oxygen-minimized transfers. This allows brewers to naturally carbonate, ferment warmer with reduced ester formation, and move beer without exposing it to air.
Sanitary Construction & CIP Compatibility
All product-contact connections are tri-clamp for sanitary serviceability. Smooth internal geometry and unobstructed access support both manual cleaning and CIP spray ball use. No threaded fittings, no hidden crevices—built for repeatable brewery cleaning standards.
What’s Included
- Fermenter (with ruler/sight reference)
- Sample valve
- Analog pressure gauge (0–30 psi)
- 15 psi pressure relief valve (PRV)
- Blow-off cane
- Two (2) 1.5" tri-clamp butterfly valves
- One (1) 2" tri-clamp butterfly dump valve
- One (1) 2" tri-clamp elbow
- Two (2) 2" tri-clamp clamps
- Two (2) 2" tri-clamp gaskets
- One (1) 3" tri-clamp clamp
- One (1) 3" tri-clamp gasket
- One (1) 3" tri-clamp cap
- One (1) 6" tri-clamp clamp
- One (1) 6" tri-clamp gasket
- One (1) 6" to 3" tri-clamp reducing cap
- 1.5" tri-clamp clamps (x9)
- 1.5" tri-clamp gaskets (x9)
- 1.5" tri-clamp caps (x3)
- Adjustable stainless legs with leveling feet
- Required clamps and gaskets for included hardware

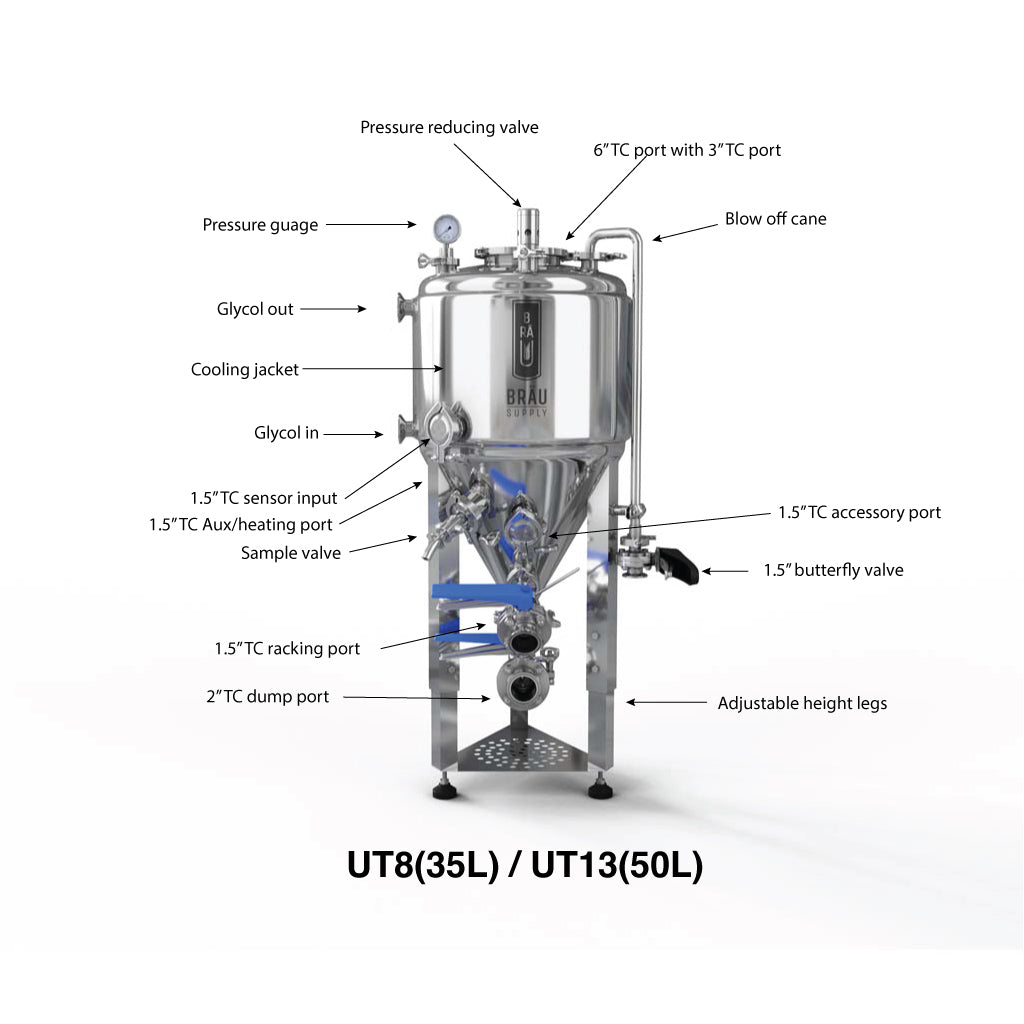

Connections & Construction
- Material: 304 stainless steel
- Wall thickness: 1.5 mm
- All process connections: 1.5" tri-clamp
- Bottom dump: 2" tri-clamp
- Manway: 6" tri-clamp with 6" to 3" reducing cap and 3" tri-clamp cap
- Pressure rating: 15 psi (1 bar)
- Cooling: Fully welded glycol jacket (cylindrical body only)
Capacity, Dimensions & Reference Specs
This fermenter is named by maximum capacity. Typical working volume depends on fermentation style, headspace requirements, and dry hop approach.
- Total capacity: 13 gal (50 L)
- Designed batch size (typical working volume): ~10 gal
For the complete Unitank size chart and dimensional reference, see: Unitank Jacketed Conical Fermenter Dimensions & Specs
