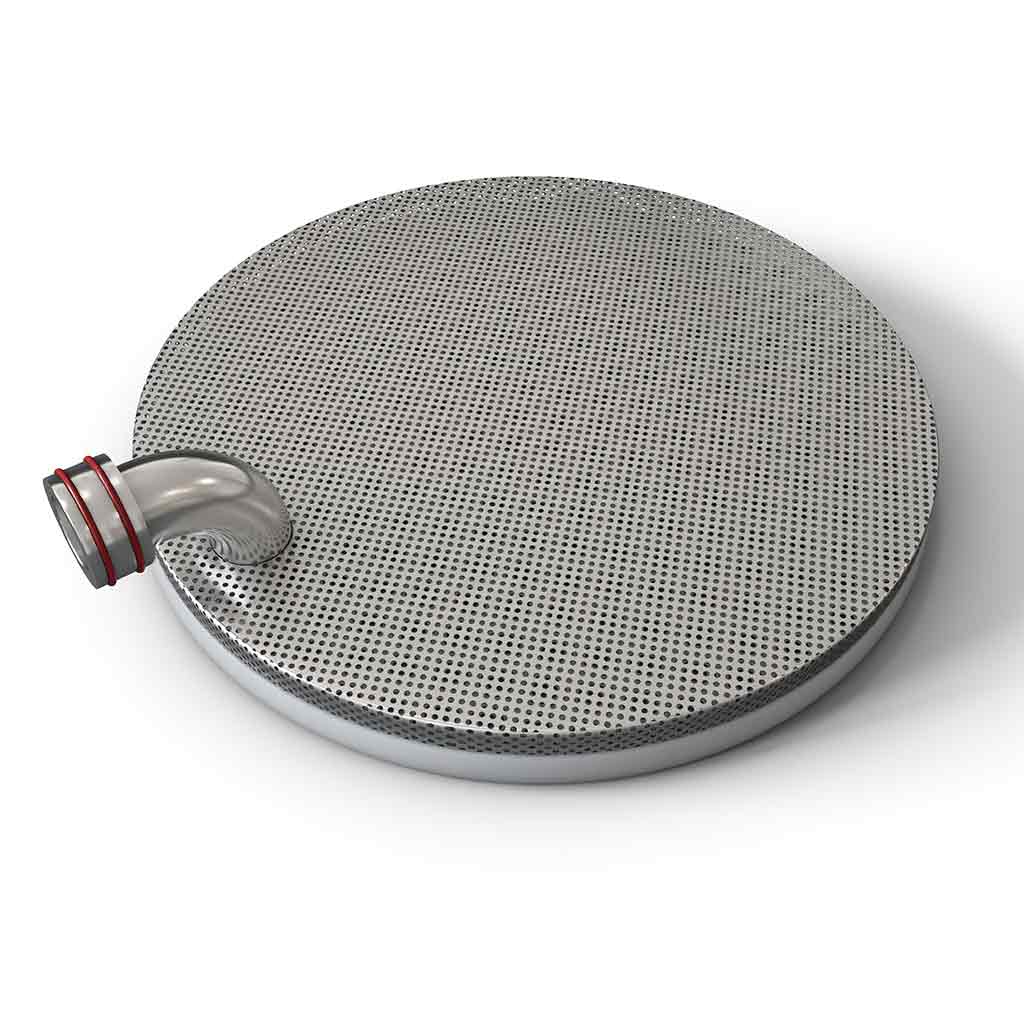

HopBlock filter plate and Pickup Tube

Low-restriction hop filtration and wort pickup system for Unibräu kettles.

The HopBlock Filter and Dip Tube is a kettle-mounted hop filtration system designed for use with Unibräu systems and Bräu Supply brew kettles. It replaces traditional hop spiders and drop-in filters with a fixed-position stainless filter plate and sealed dip tube assembly.

The large-diameter perforated filter plate allows unrestricted wort flow during first wort hopping, boiling, and whirlpooling while retaining both pellet and whole leaf hops.

Key Features

• Low-Restriction Filter Plate — Perforated 304 stainless steel plate provides consistent flow without clogging.
• Large Diameter Design — High surface area minimizes flow restriction even with heavy hop loads.
• Serviceable During the Boil — Flow can be restored by lightly clearing the plate surface if hop material accumulates.
• Sealed Dip Tube Pickup — Double-sealed dip tube ensures clean wort transfer without hop bypass.
• One-Piece Silicone Seal — Prevents hops from migrating underneath the filter plate.
• 304 Stainless Steel Construction — Durable, corrosion-resistant, and easy to clean.

Available Sizes

• 10G Size — 10" diameter (for 10 gallon kettles)
• 20G & 30G Size — 15.75" diameter (for 20 and 30 gallon kettles)

Compatibility

• Unibräu brewing systems
• Bräu Supply brew kettles

Purchase Options

• HopBlock filter plate with sealed dip tube (complete system)
• Dip tube only (replacement or standalone use)

HopBlock filter in action vs. leaf and pellet hops:
