Brau Supply 1.5" Tri-clamp brewing element 304 SS Ultra low watt density
Brau Supply 1.5" Tri-clamp brewing element 304 SS Ultra low watt density
Brau Supply 1.5" Tri-clamp brewing element 304 SS Ultra low watt density
Brau Supply 1.5" Tri-clamp brewing element 304 SS Ultra low watt density

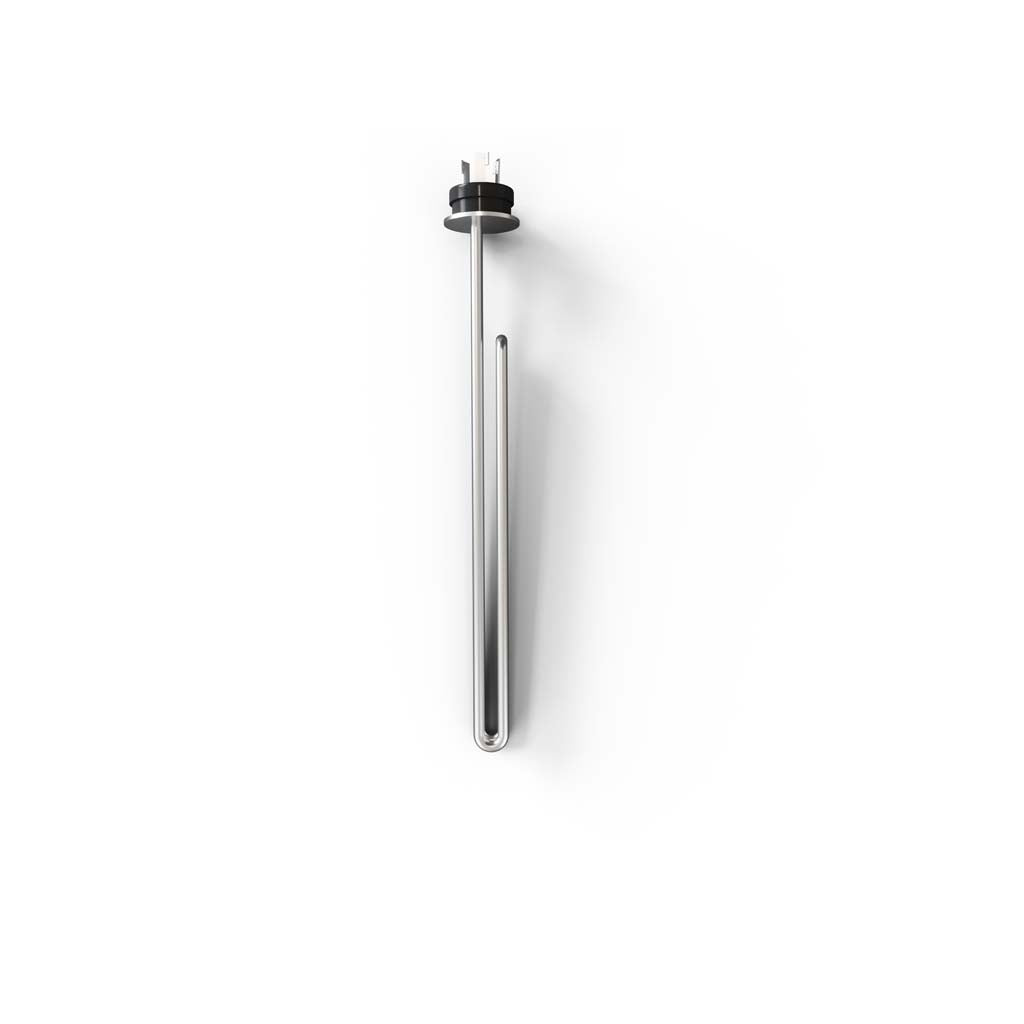

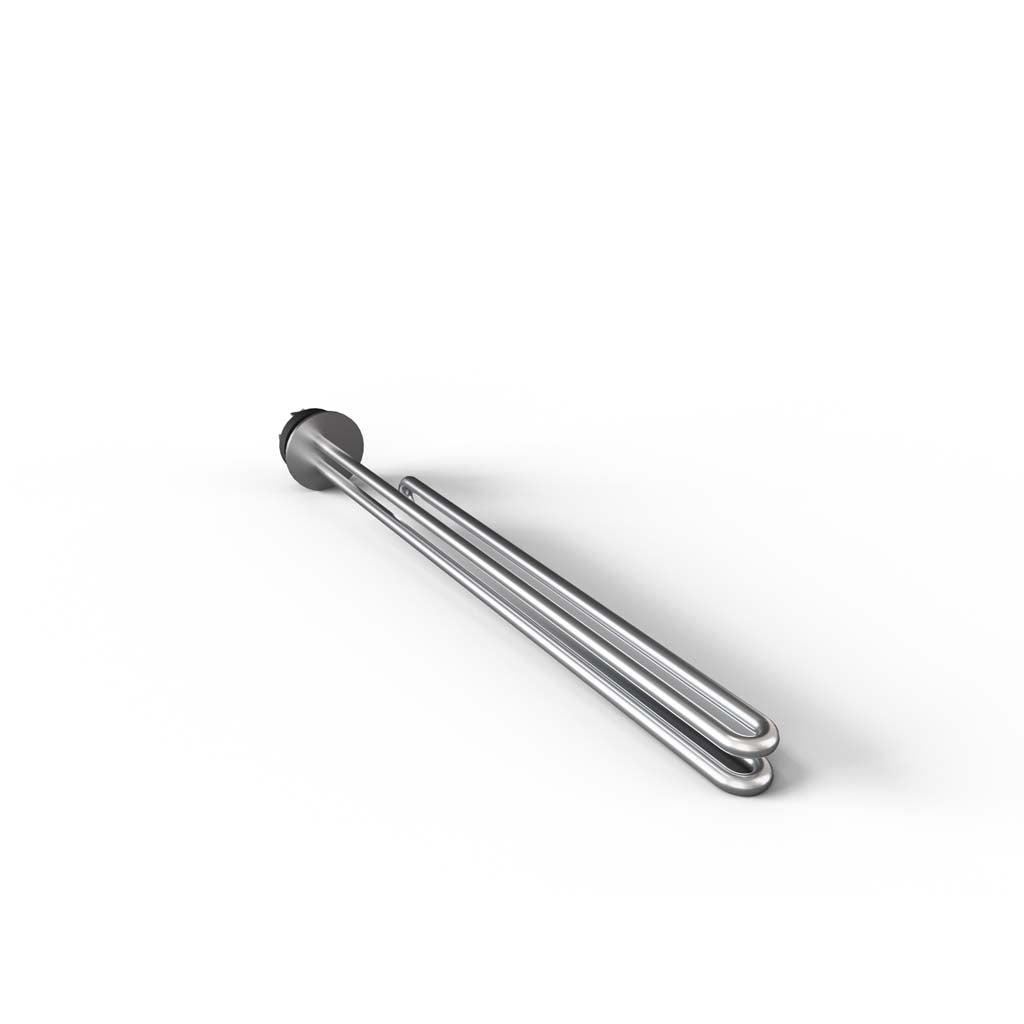

5500W ULWD Tri-Clamp Brewing Element – Mirror Polished Stainless Steel

Designed for electric brewing systems, this 5500W ULWD (Ultra-Low Watt Density) heating element offers efficient, even heat transfer while minimizing scorching and caramelization. The 1.5" tri-clamp connection provides a secure, sanitary, and tool-free interface to your kettle or HERMS coil.

Crafted from 304 stainless steel with a mirror-polished finish, this element is easy to maintain — no scrubbing required. Simply soak in PBW and wipe clean. With a 14" insertion length from the tri-clamp flange, it fits most vessels without interfering with internal components.

Ideal for home and pilot-scale brewing systems.

$75.00 USD
Description

Specifications

  • Power: 5500W
  • Voltage: 240V AC
  • Connection: 1.5" Tri-Clamp
  • Element Material: Mirror-polished 304 stainless steel
  • Length: 14" from flange face to element tip
  • Plug: NEMA 6-30P (standard 240V brewing plug)
  • Mounting: Weldless tri-clamp for easy removal and cleaning
  • Watt Density: ULWD (Ultra-Low Watt Density)
  • Application: Compatible with boil kettles, HERMS coils, and hot liquor tanks
  • Compatibility: Works with all Bräu Supply kettles and most tri-clamp brewing vessels

Care & Cleaning


Simply soak in PBW and wipe clean — no scrubbing needed. The mirror-polished surface resists buildup and scorching.


For detailed cleaning guidance, see our article:
How to Clean Brewing Elements Effectively.

Important Notes

  • Always operate submerged in liquid — never dry fire
  • Requires a 240V GFCI-protected circuit
  • Not intended for non-brewing or industrial applications

Technical Details

UPDATED OPERATION & SAFETY MANUAL

Ultra-Low Watt Density Brewing Element – 1.5″ Tri-Clamp | 1650W / 2500W / 5500W

Overview

These fold-back style electric brewing elements are built to deliver clean, even heat with low watt density — reducing scorching and improving brew day consistency. Constructed from polished 304 stainless steel, they install via 1.5″ tri-clamp and feature an L6-30P quick disconnect plug for safe, tool-free use.

Choose from three power options to suit your brewing system:

  • 1650W (120V) – for standard wall outlet brewing
  • 2500W (240V) – mid-range power for efficient heating
  • 5500W (240V) – high-output for larger batches

Installation

  1. Mount the element into any 1.5″ tri-clamp port using a gasket and clamp.
  2. Plug into an appropriate power source via the included L6-30P connector.
  3. Only use with approved brewing controllers for safe cycling and temperature control.
  4. Ensure element is fully submerged in liquid before powering on.

⚠️ Dry firing will cause immediate element failure and void warranty.

🔌 Power & Controller Compatibility

  • 1650W (120V): Includes 6′ cord with standard 5-15 plug
    • Compatible with SV1 controller ([click here])
  • 2500W (240V): Includes 6′ cord with 5-15 plug
    • Compatible with SV1 controller ([click here])
  • 5500W (240V): No cord included – must be paired with:
    • SV240 Power Regulator ([click here])
    • or SV2 Controller (240V wired) ([click here])

All models use L6-30P twist-lock connectors.

📏 Specifications

  • Element Type: Fold-back, ultra-low watt density
  • Material: 304 Stainless Steel, polished
  • Connection: 1.5″ Tri-Clamp
  • Plug: L6-30P
  • Cord Length: 6′ on 1650W and 2500W models
  • Lengths:
    • 1650W / 2500W – 10″ from flange face
    • 5500W – 13.5″ from flange face

🧼 Cleaning & Maintenance

  • Always allow the element to cool before removing or cleaning.
  • Disconnect the quick plug and remove via tri-clamp.
  • Rinse off any residue and soak in brewery-safe cleaner (e.g. PBW).
  • Avoid scratching or bending the element.
  • Rinse, sanitize, and air dry thoroughly before storage or reinstallation.
  • Inspect regularly for scale buildup or discoloration.

🛡️ Warranty

All brewing elements are covered under a 90-day limited warranty.
Dry firing, misuse, or improper electrical installation voids warranty.
Always verify submersion, proper voltage, and clean operation to ensure longevity.
