Counterflow Plate Chiller

Connections

Our plate chiller is the fastest, most efficient way to chill wort into your fermenter. Custom built for us, it features sanitary 1.5" tri-clover fittings on the wort side for industry standard connections to all your brew gear.  Made from 304 stainless steel, it comes with the necessary tubing, and water connections to garden hose and standard faucet.  No pipe threads to contaminate your batch, clean up with our chiller is a breeze.

In comparative testing, we found that counterflow plate chillers chill at almost twice the speed of coil counterflow chillers, and our large orifice plates have a harder time getting clogged.  Save precious water, and time with our counterflow plate chiller.

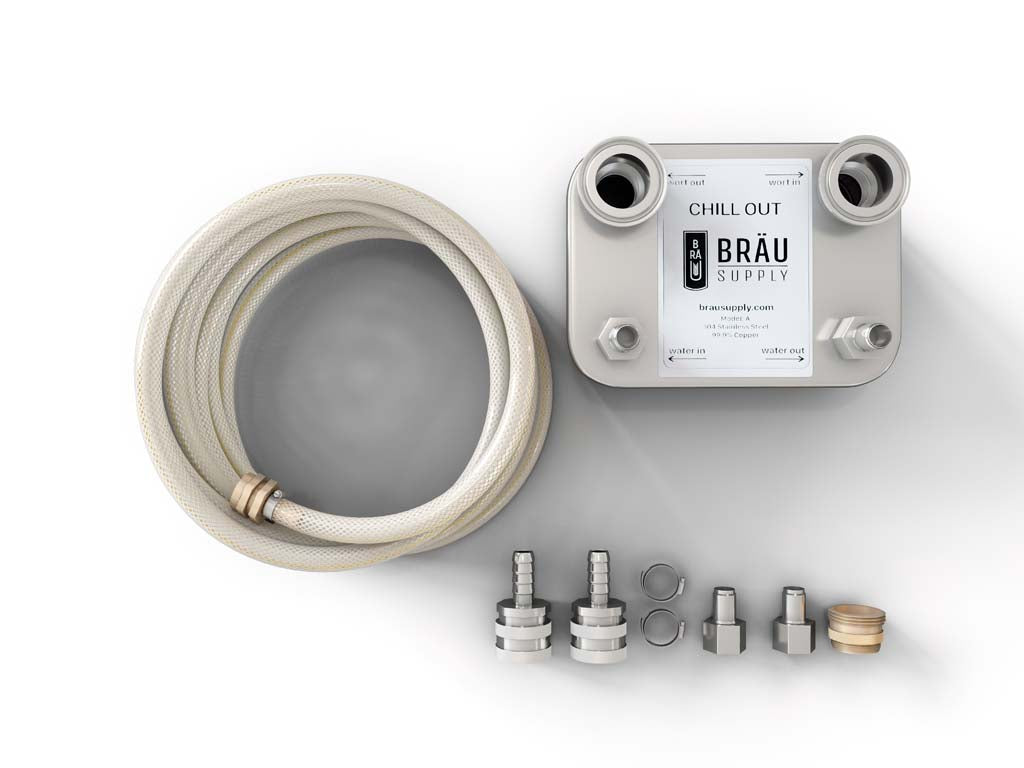

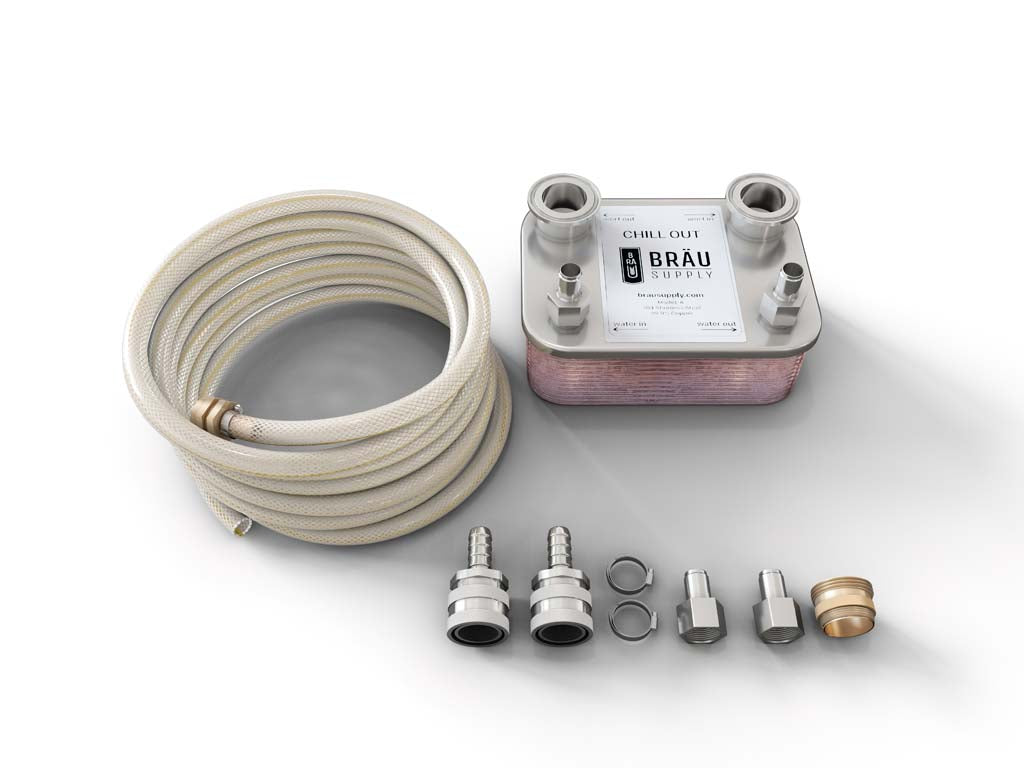

Comes with 4.9 meters (16 feet) of braided reinforced tubing, 2 barb adapters, a faucet adapter and clamps.

Please note chiller comes with Standard connection kit which isn't exactly as shown in the photo!

Specifications:

  • 168mm x 122mm plate dimensions
  • 24 plates
  • 0.020 per plate heat exchange area
  • 3.0 Mpa design pressure
  • 304 SS and brazed with 99.9% copper
  • 1/2" NPT water connections
  • 1.5" Tri-Clamp wort connections
